- 💧 FOR 35–55 GALLON AQUARIUMS: Designed to circulate and filter water in medium to large freshwater fish tanks with a rated no-load flow of up to 224.5 GPH.
- 🧽 MULTI-LAYER FILTRATION: The two-stage canister holds coarse-to-fine filter media to capture suspended debris and support routine aquarium water maintenance.
- 💡 TIMED 7W CLARIFYING LIGHT: The integrated light provides additional water-clarifying support and can help manage unwanted algae growth when used according to the instructions.
- 🔇 QUIET BRUSHLESS MOTOR: A full-copper brushless motor and wear-resistant zirconia shaft provide steady circulation while operating at a stated noise level below 45 dB.
- 🎛️ ADJUSTABLE WATER FLOW: The control valve lets you regulate intake and outlet flow according to aquarium size, fish species and filtration requirements.
- 💨 AIR-RELEASE VALVE: The built-in valve helps remove trapped air from the tubing, supporting smoother priming and more consistent water circulation.
- 🔒 SEALED CANISTER DESIGN: A bi-directional locking mechanism and rubber sealing ring help secure the canister and reduce the risk of leakage at connection points.
- 🔧 MAINTENANCE-FRIENDLY CONNECTIONS: Quick-detachable double connectors simplify hose disconnection when the filter media or canister requires cleaning.
External Canister Filtration for Freshwater Aquariums

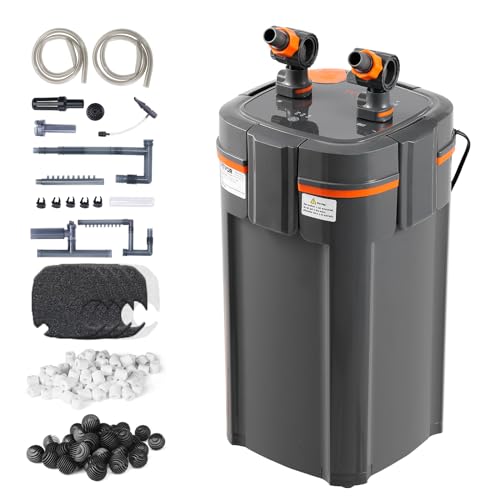

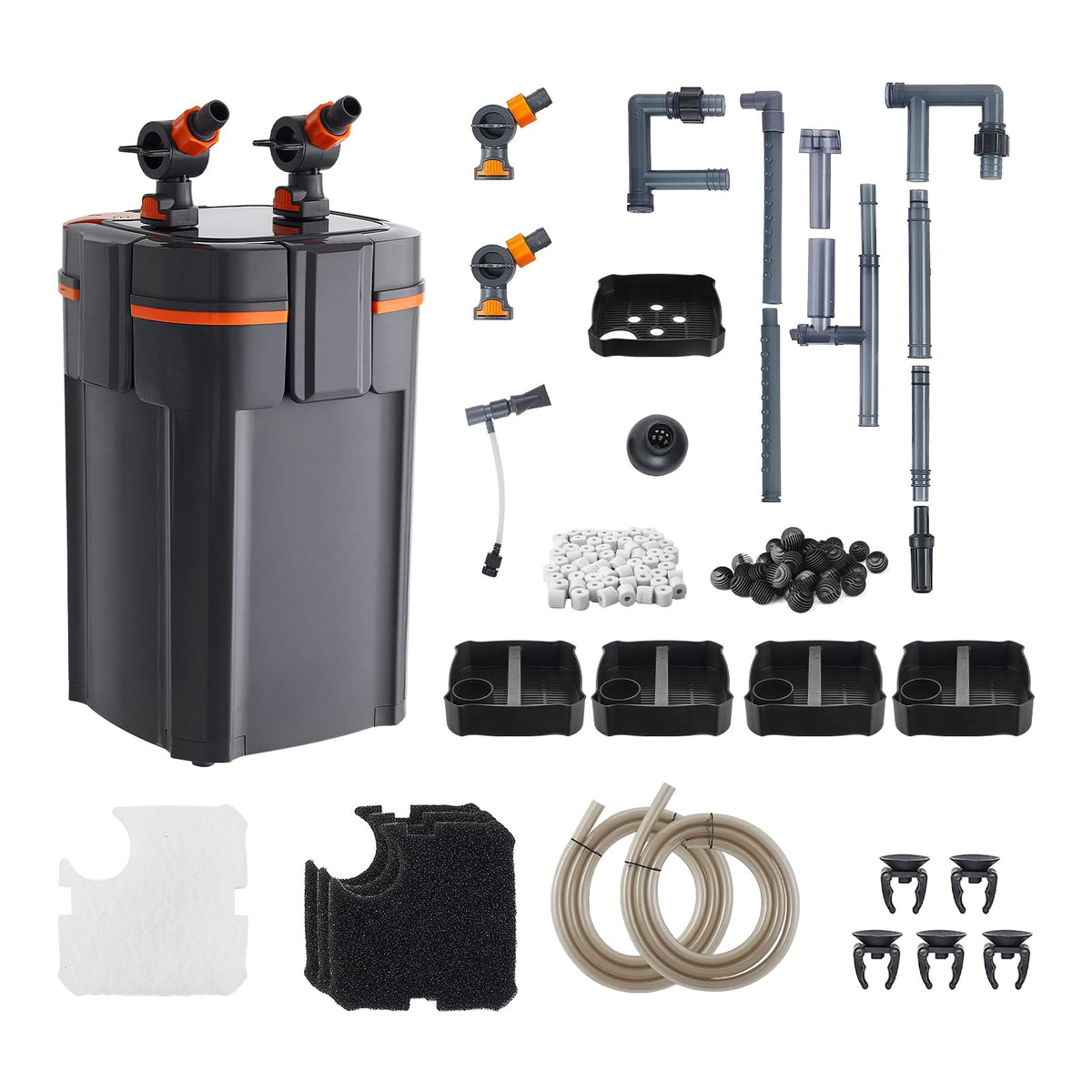

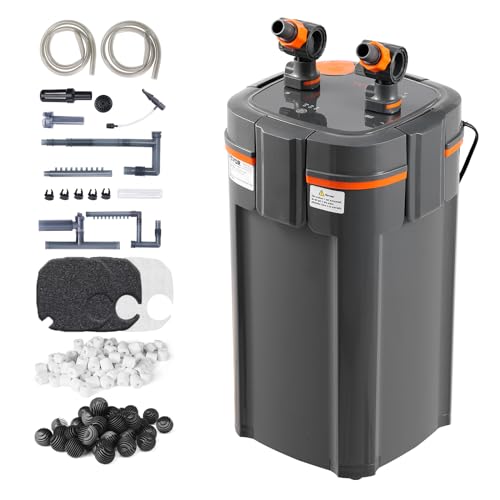

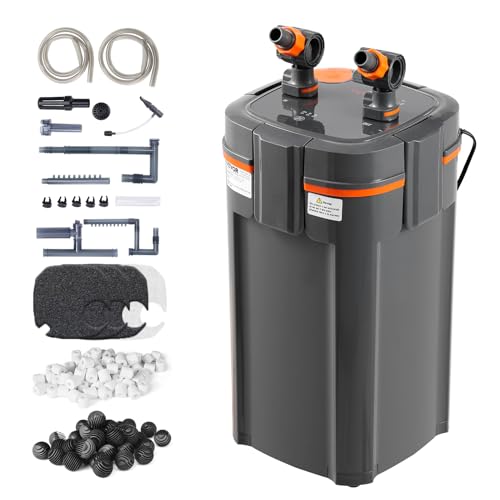

The VEVOR 224.5 GPH External Aquarium Canister Filter combines mechanical filtration, adjustable water circulation and an integrated timed light in a compact external system.

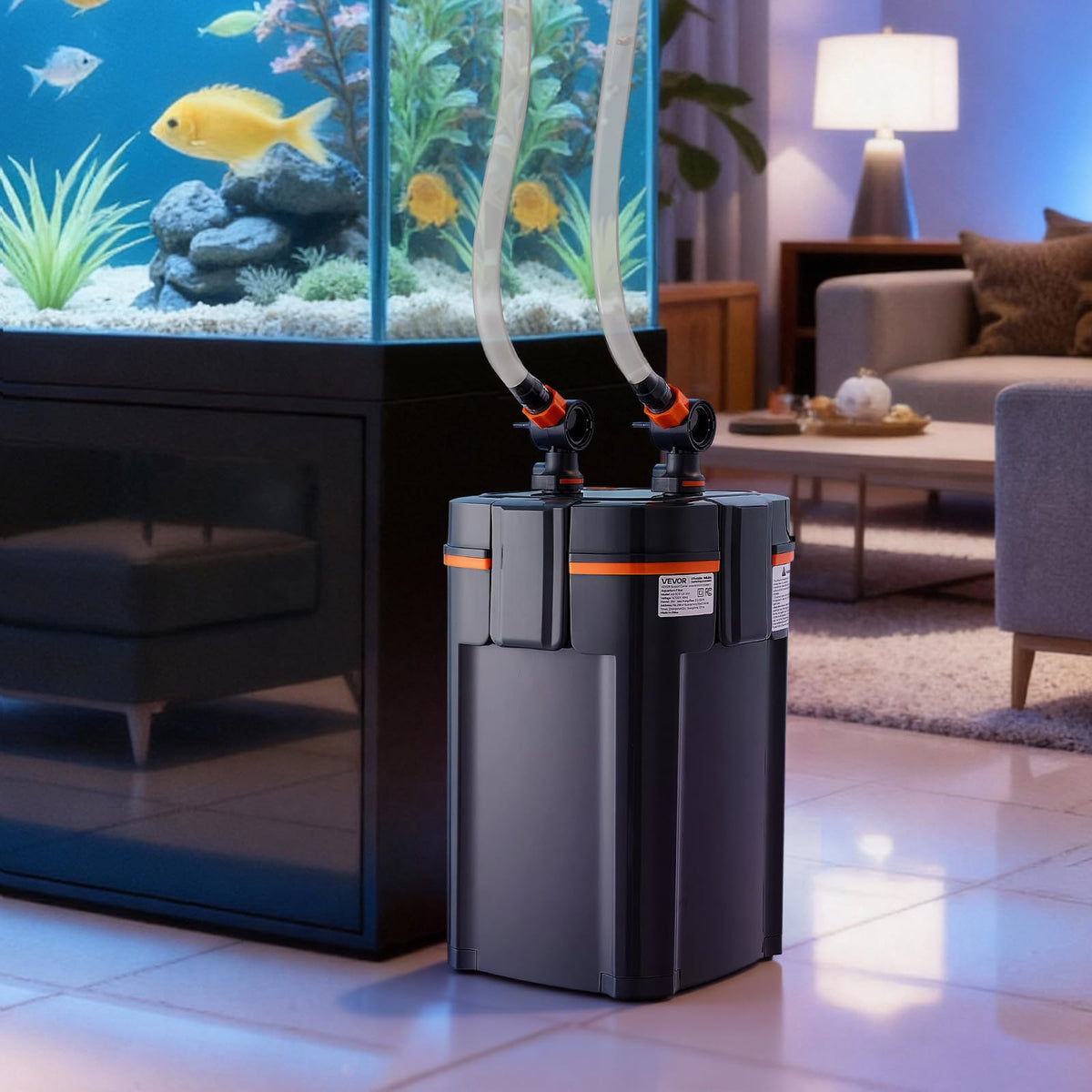

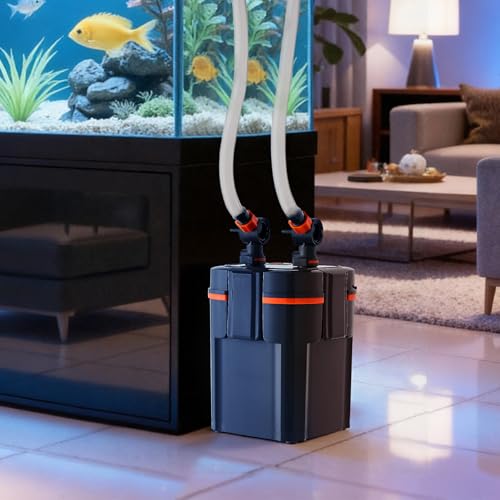

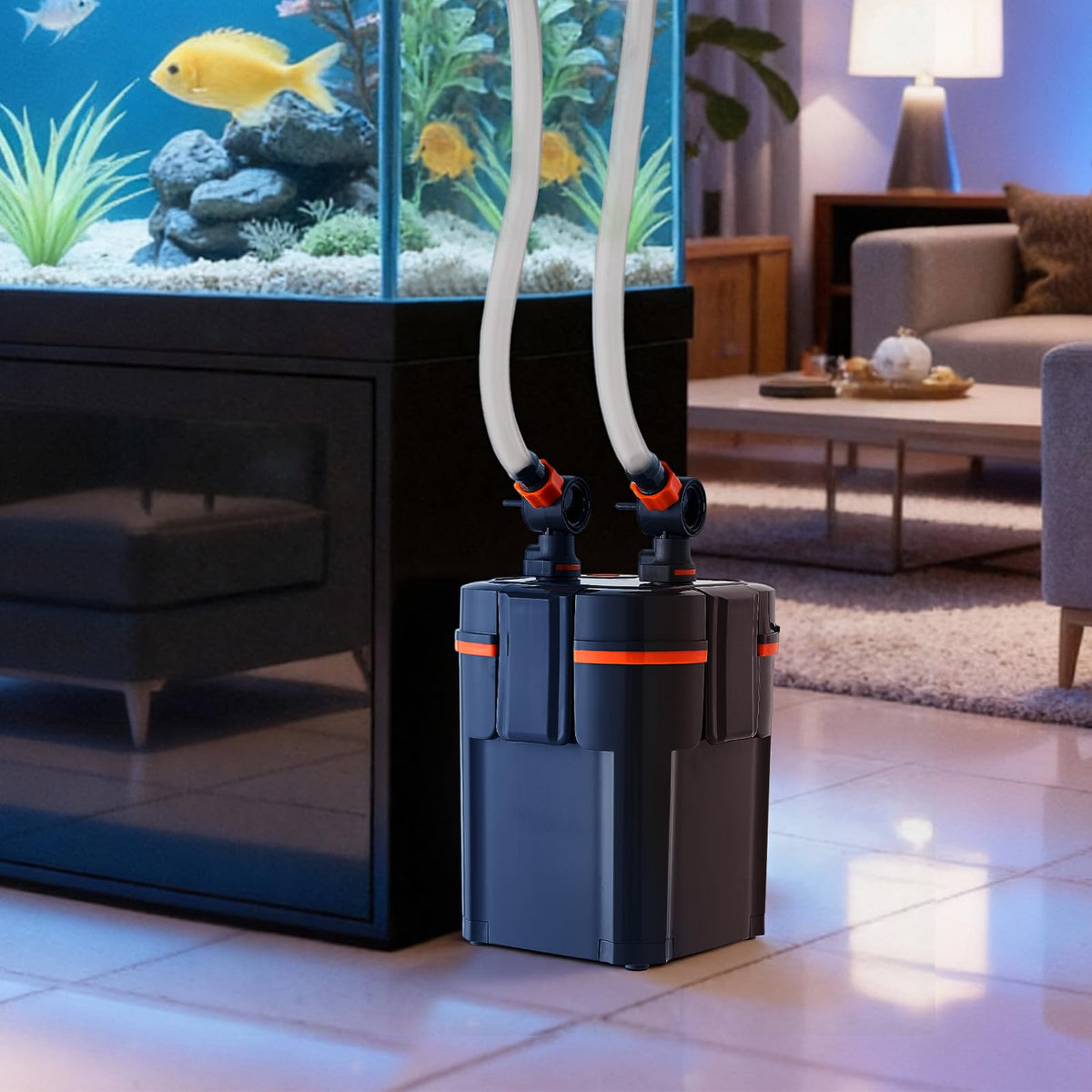

Designed for freshwater aquariums between approximately 35 and 55 gallons, it moves the filtration equipment outside the tank to preserve interior swimming space and create a cleaner aquarium display.

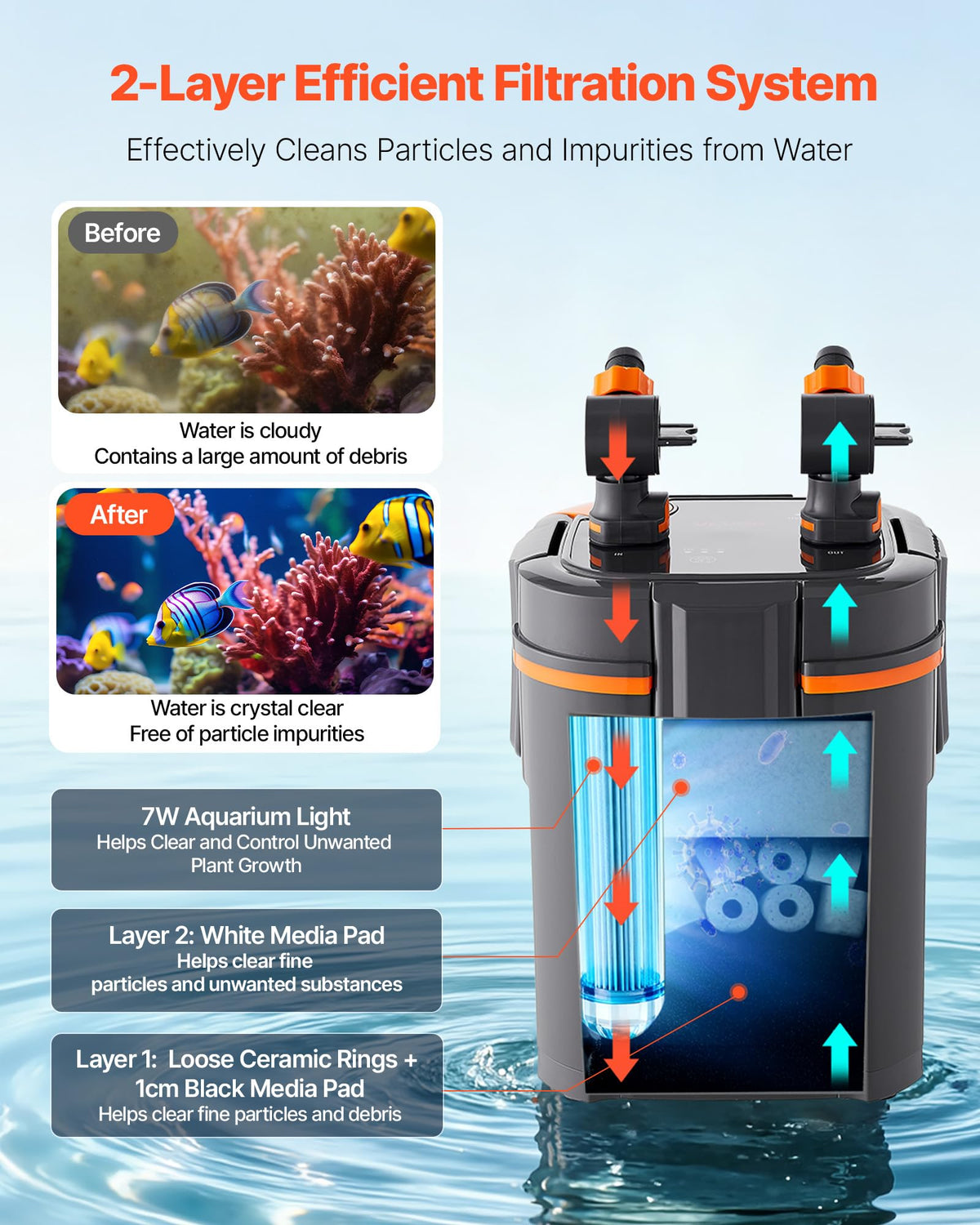

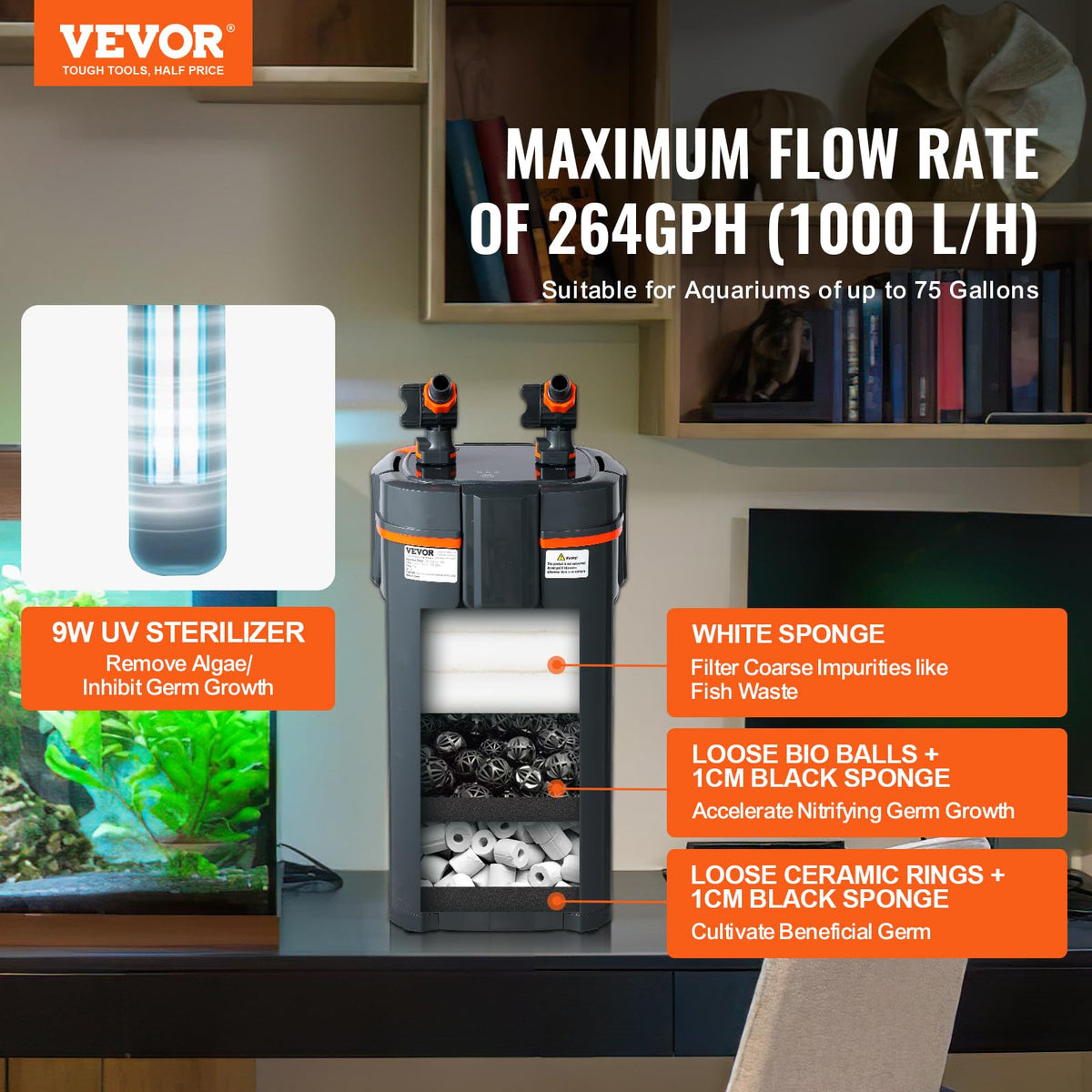

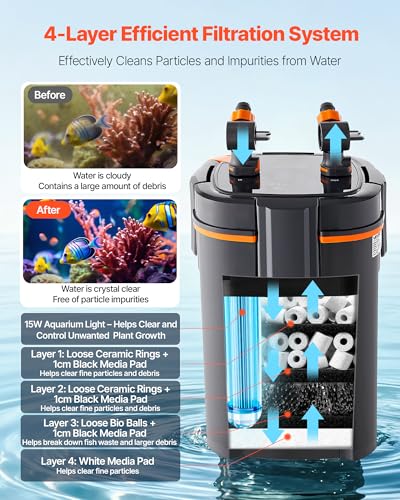

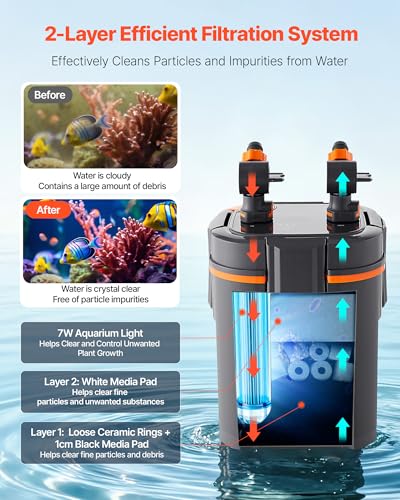

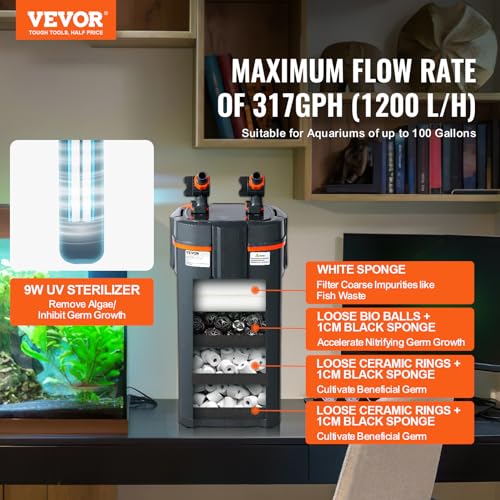

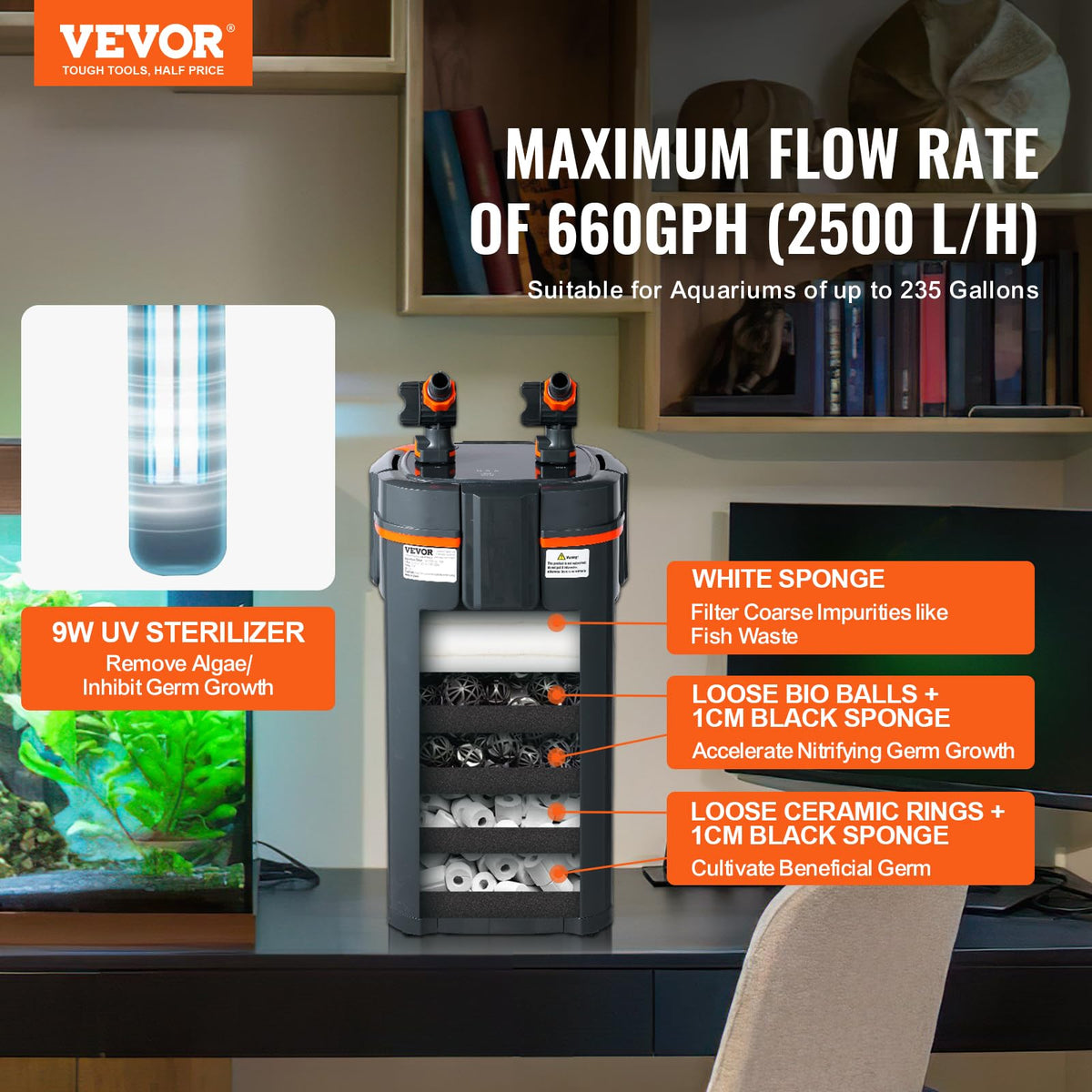

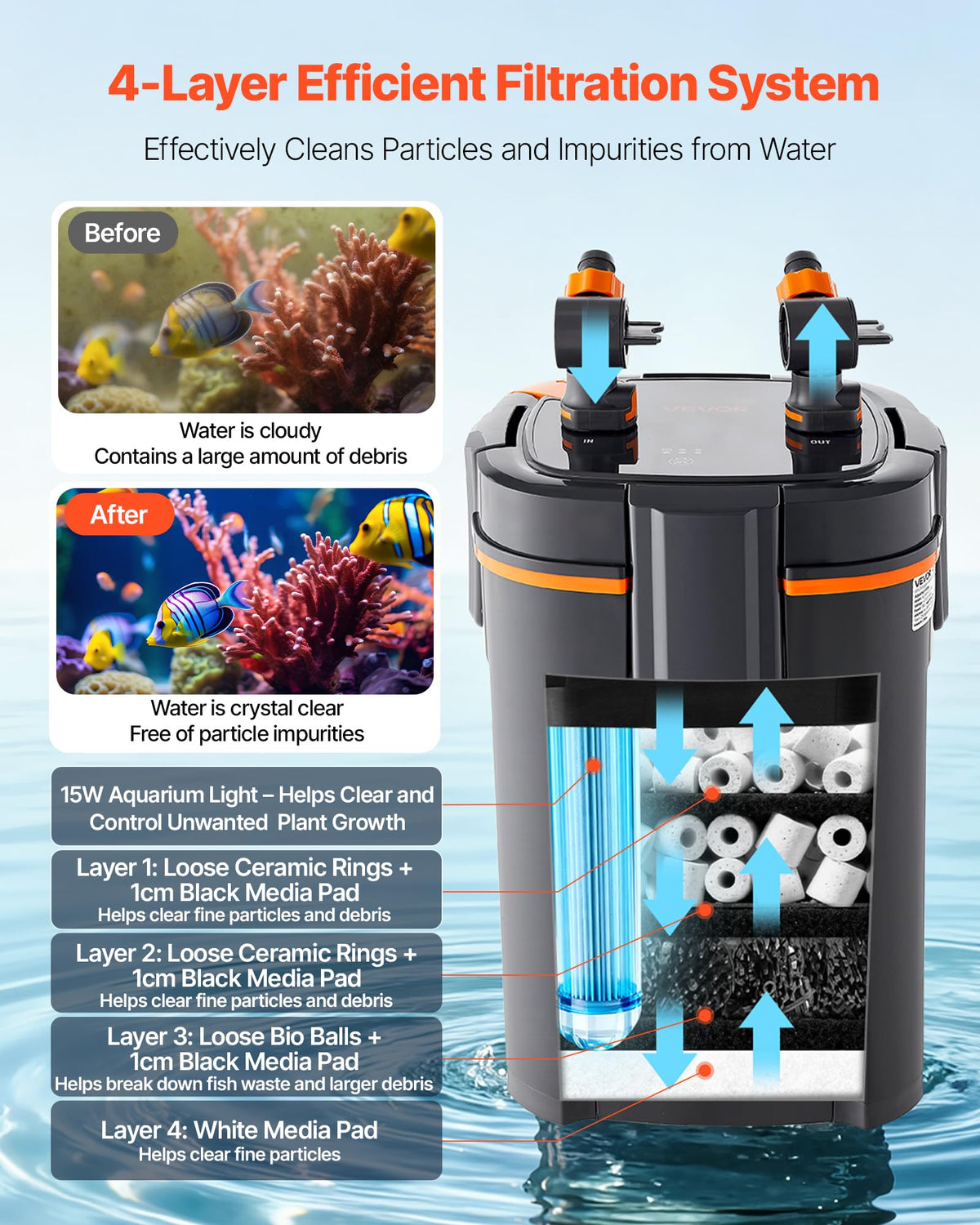

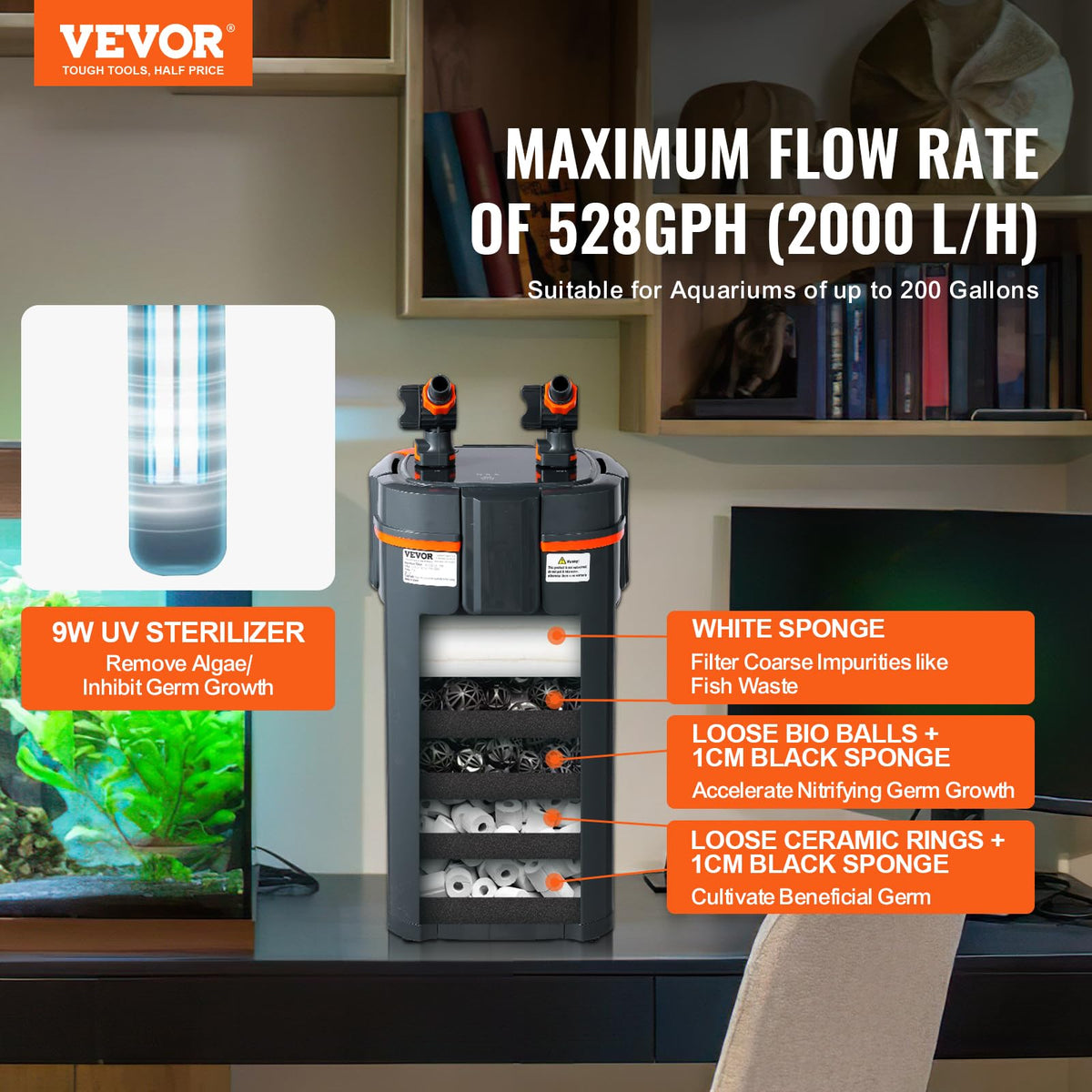

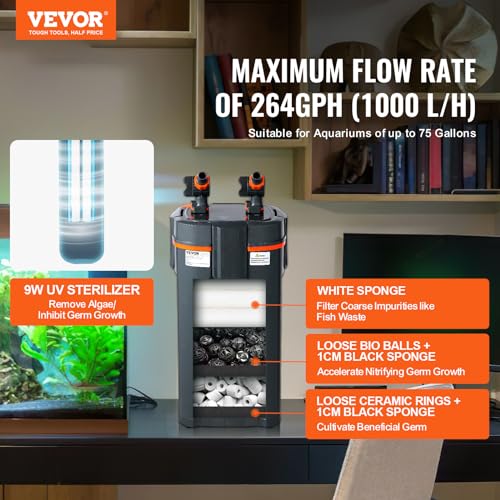

Two-Stage Multi-Layer Filtration
The internal baskets accommodate multiple filter materials, allowing aquarium water to pass through progressively finer filtration layers.
Captures Visible Debris
Coarse filter material traps larger particles such as uneaten food, plant fragments and suspended waste before water passes through the finer filtration layers.
Supports Biological Filtration
Compatible biological media provides surface area where beneficial aquarium bacteria can develop. Existing mature media can be transferred gradually when replacing an established filter.
Customisable Filter Media
Filter media can be arranged according to the requirements of your aquarium. Rinse reusable media in removed aquarium water to help preserve beneficial bacteria.

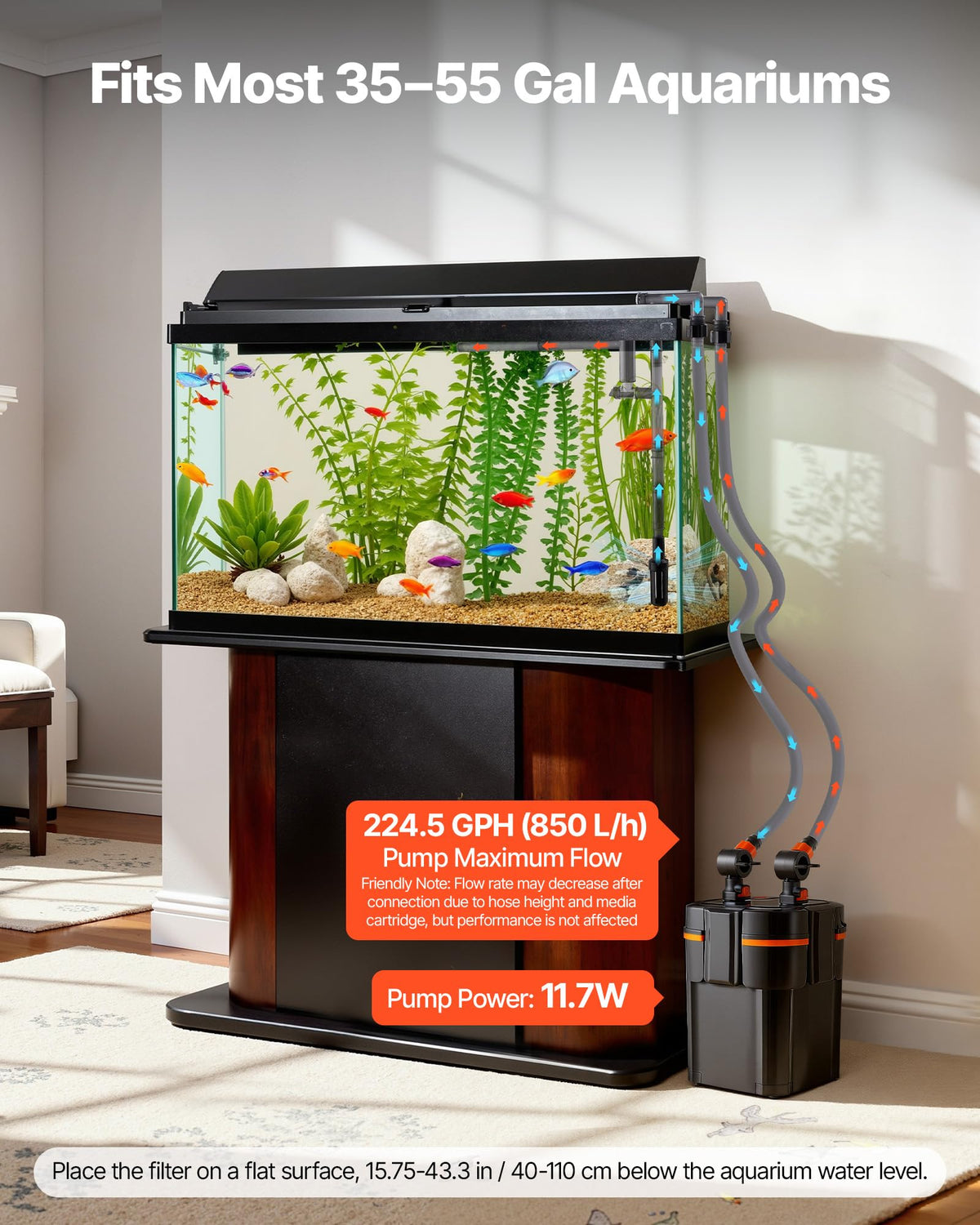

224.5 GPH Rated Water Circulation
The 11.7W pump provides a manufacturer-rated no-load flow of up to 224.5 gallons per hour.

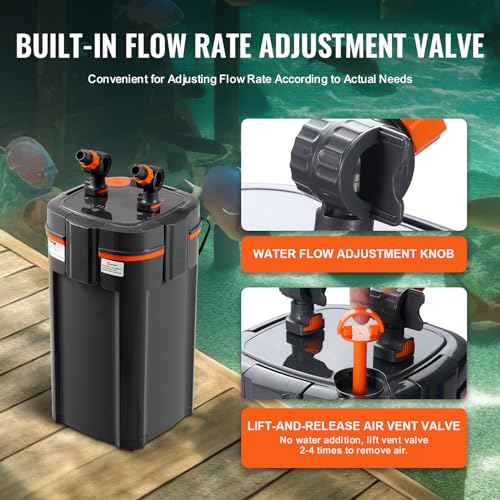

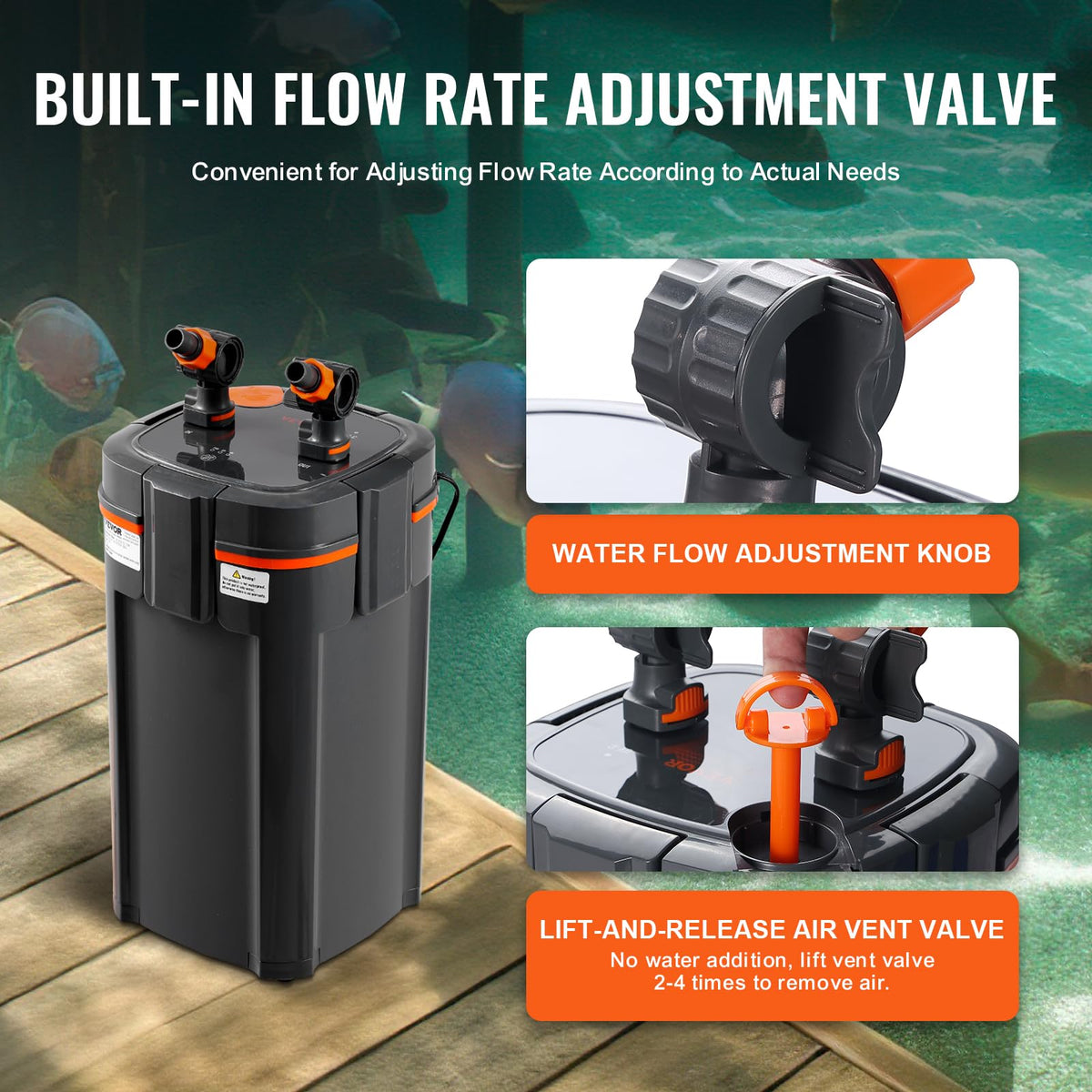

Adjustable Intake and Outlet Flow
A flow-control valve lets you reduce or increase water movement according to tank size, livestock and aquascape layout.
Actual Flow May Be Lower
The stated 224.5 GPH rating is measured without media or installation resistance. Actual circulation normally decreases after adding filter media, raising the outlet height or installing longer tubing.

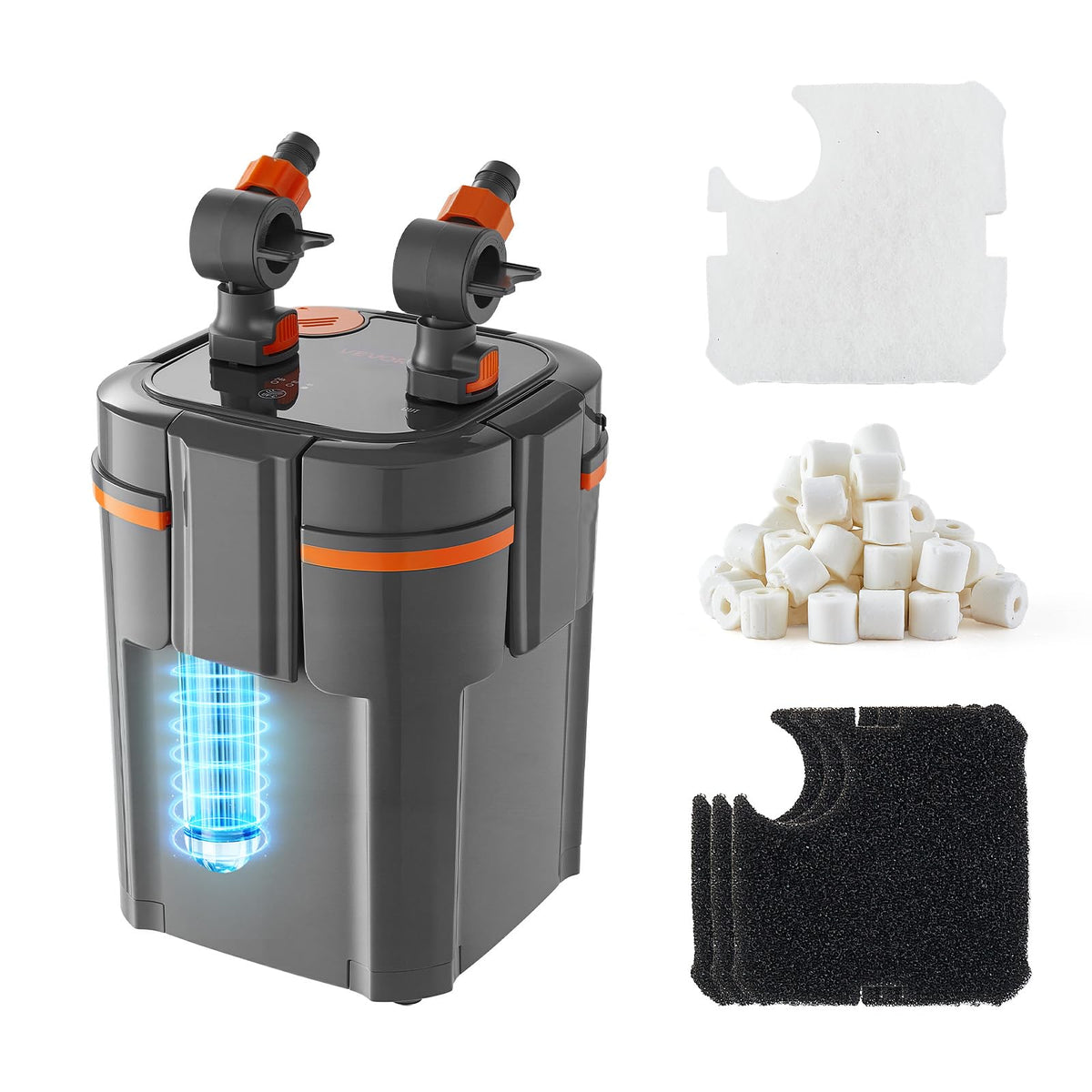

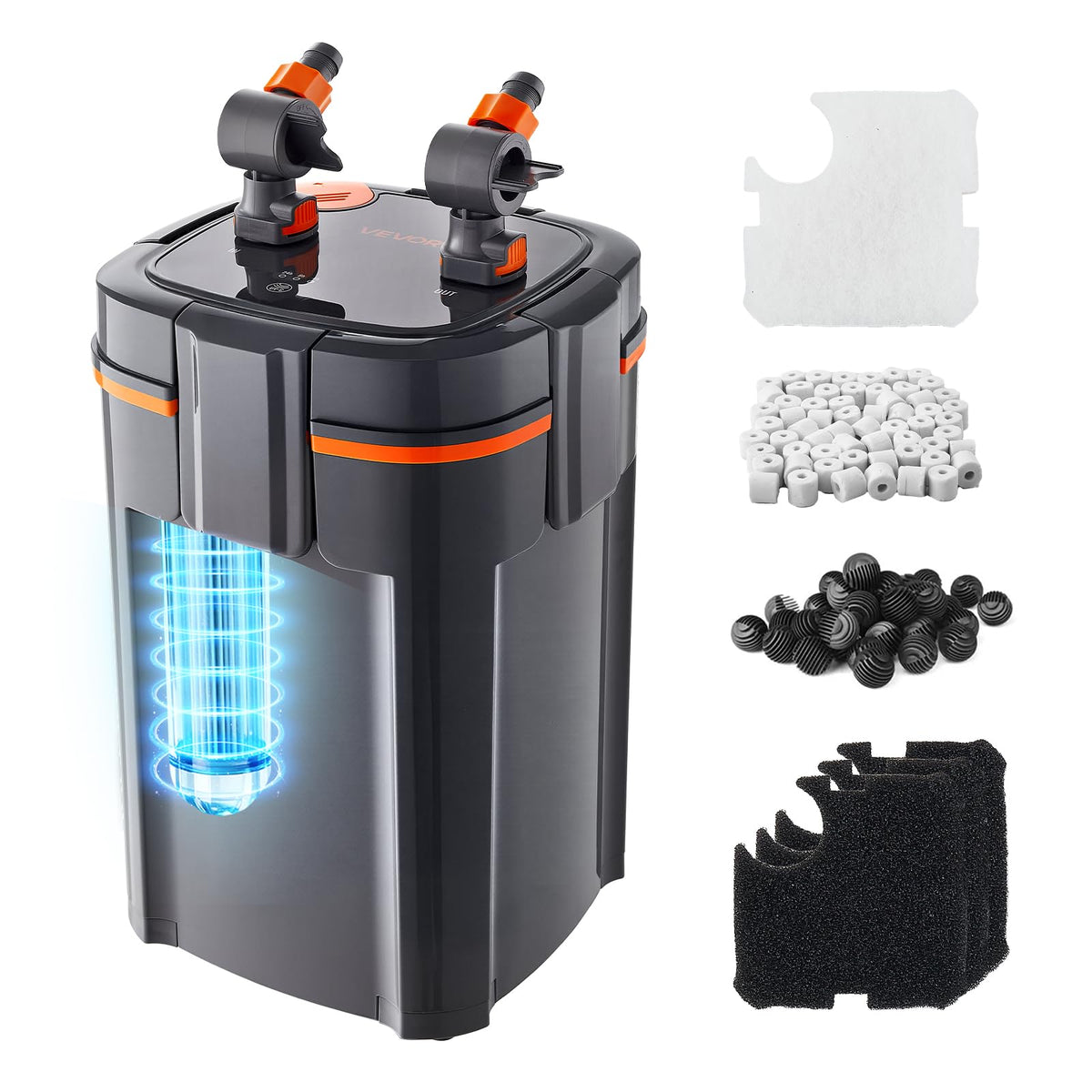

Timed 7W Clarifying Light
The integrated 7W light provides additional support for maintaining clearer aquarium water and managing unwanted algae growth.
Controlled Operating Periods
Use the timed light according to the manufacturer’s directions. Continuous or excessive use may not be appropriate for every aquarium setup.
Separate from the Display Light
The internal clarifying light is part of the filtration system and is not intended to replace the main aquarium lighting required by fish or live plants.
Quiet and Secure External Operation

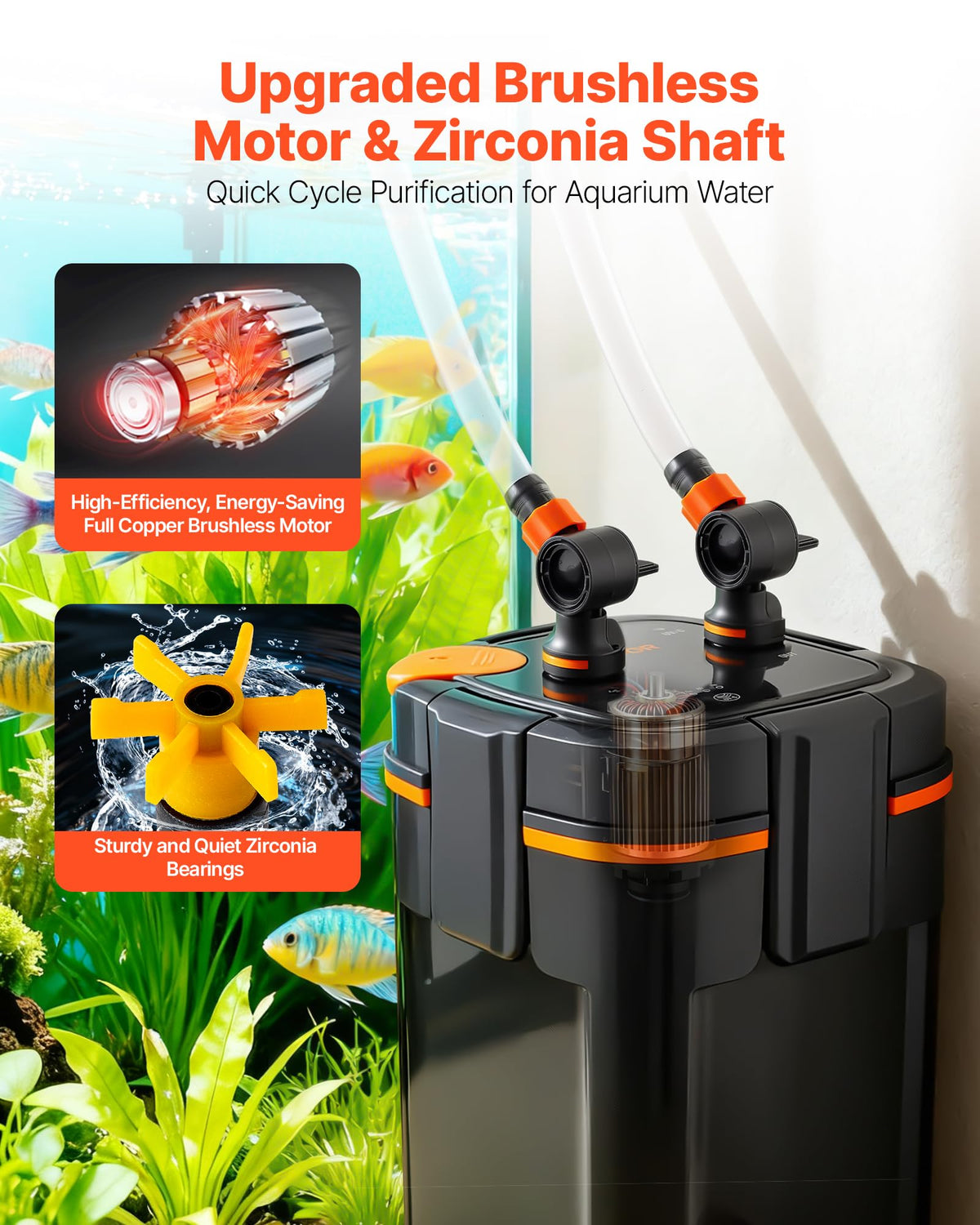

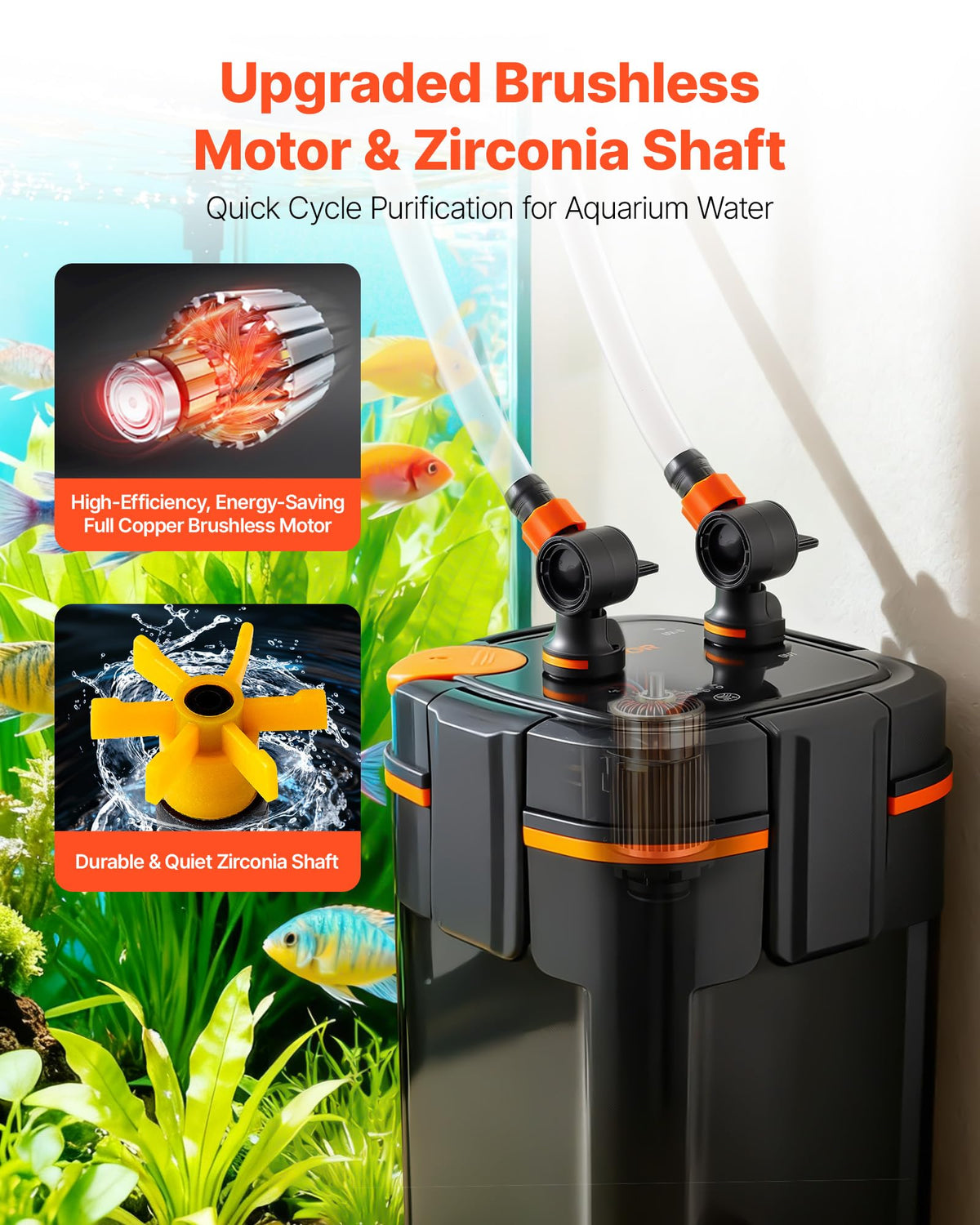

The filter uses a full-copper brushless motor with a zirconia shaft to provide smoother operation and reduce mechanical noise.
Stated Noise Level Below 45 dB
When correctly installed, primed and maintained, the unit is designed to operate below 45 dB. Trapped air, blocked media or incorrect placement may increase operating noise.

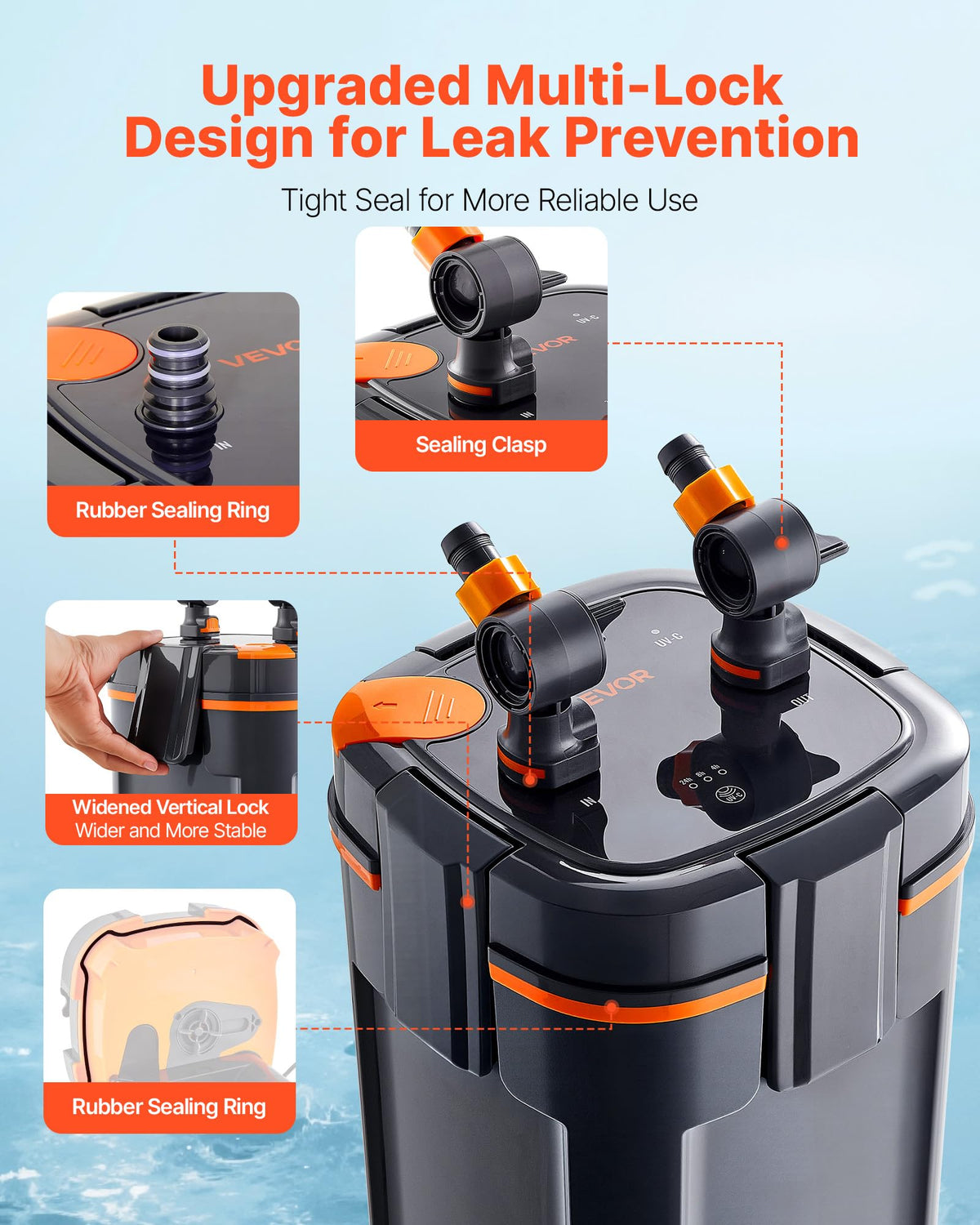

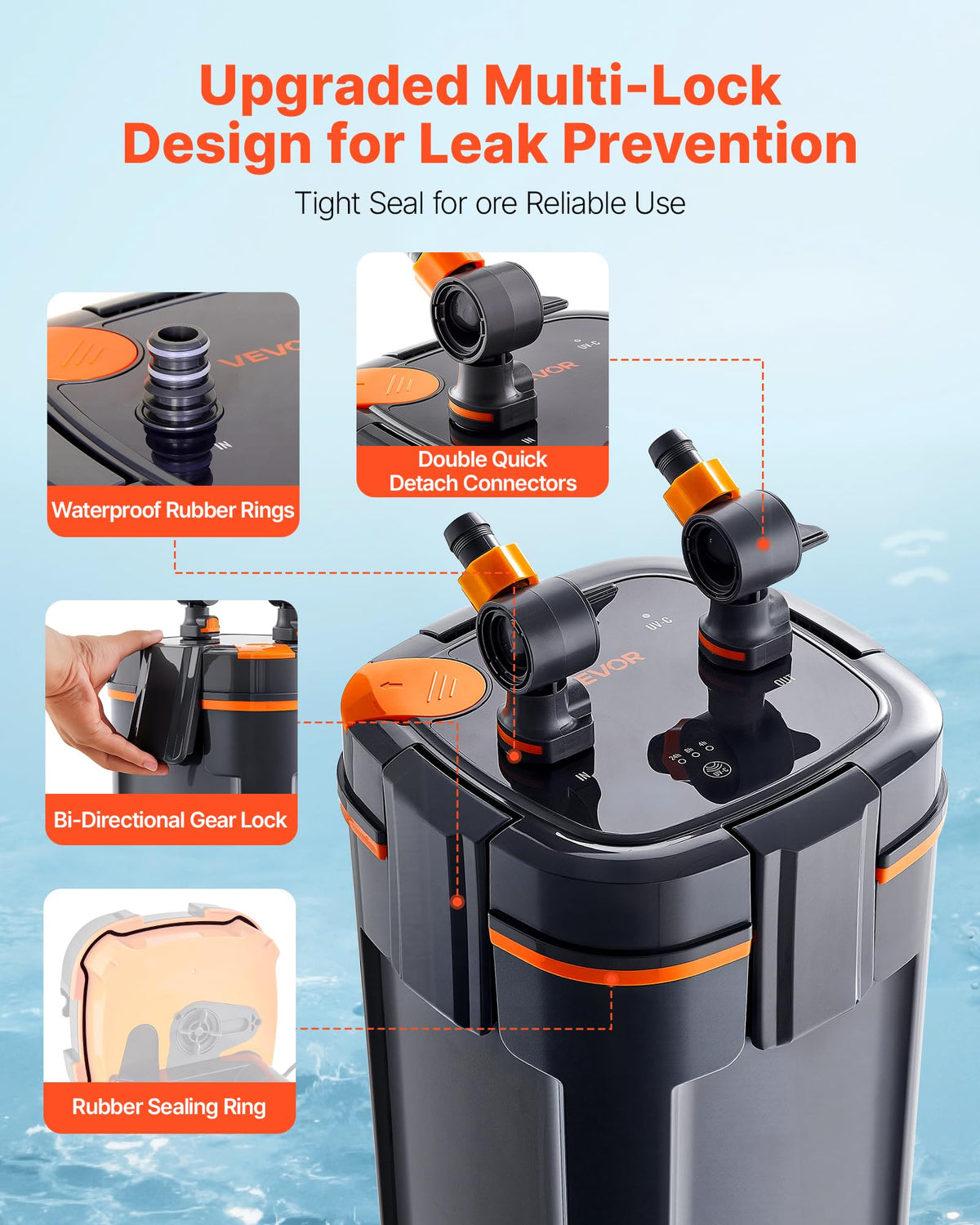

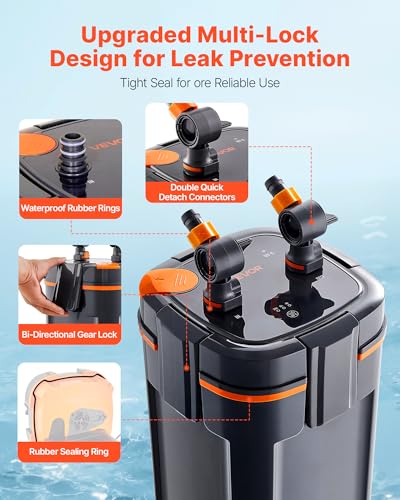

Locking Lid and Rubber Seal
A bi-directional gear lock holds the canister assembly together, while the fitted rubber sealing ring helps reduce leaks around the main connection.

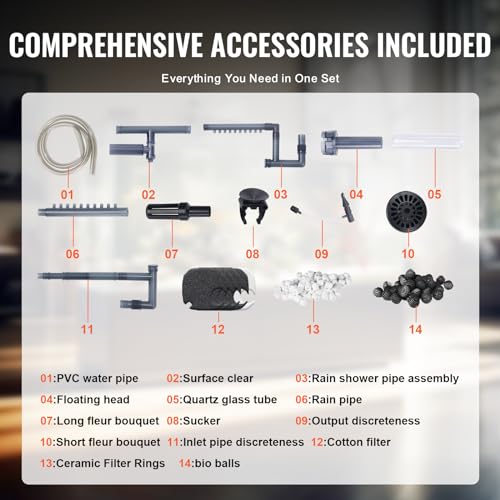

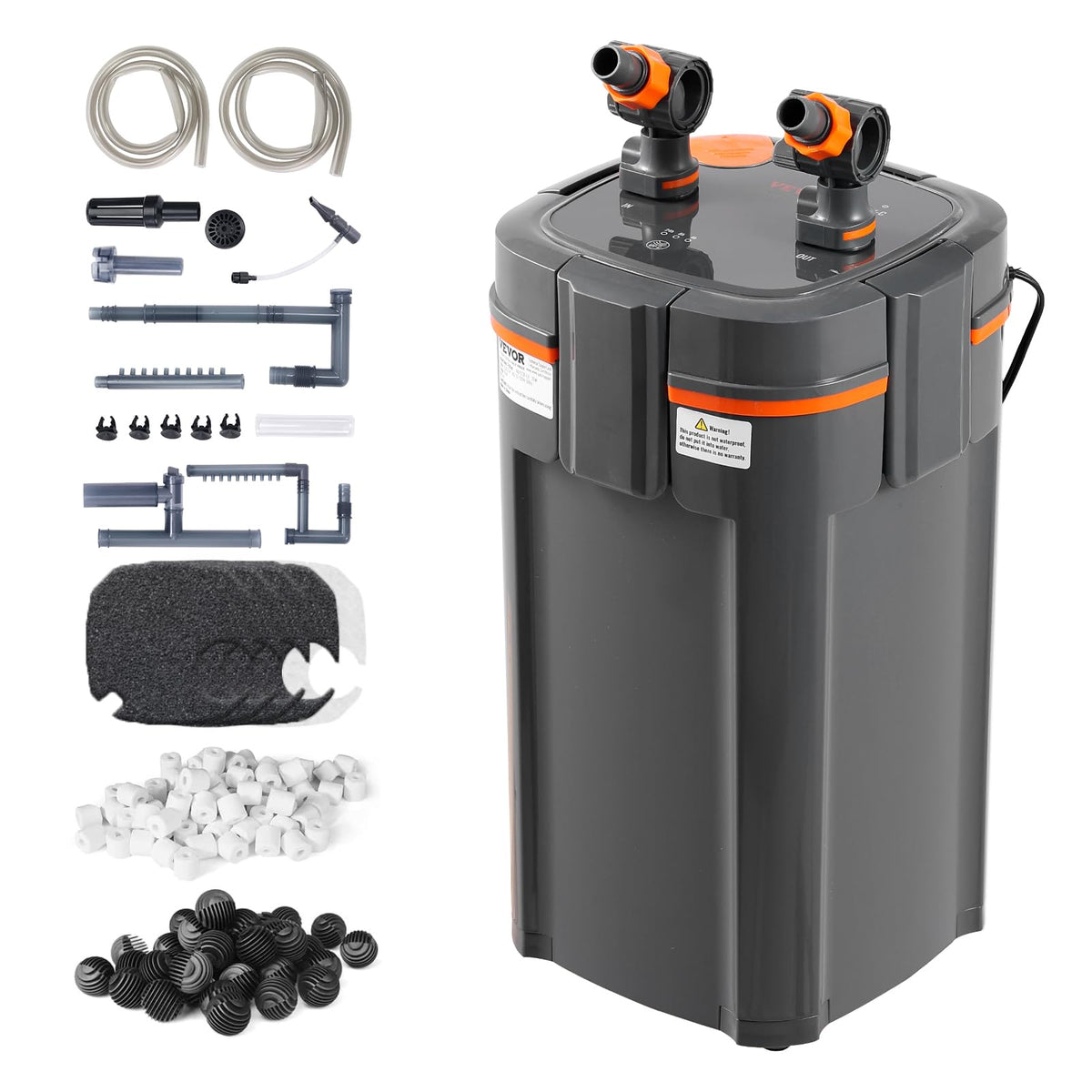

Hose and Connection Details
The included hose measures approximately 1.2 metres and has the following stated dimensions:
- Outer diameter: 20 mm
- Inner diameter: 16 mm

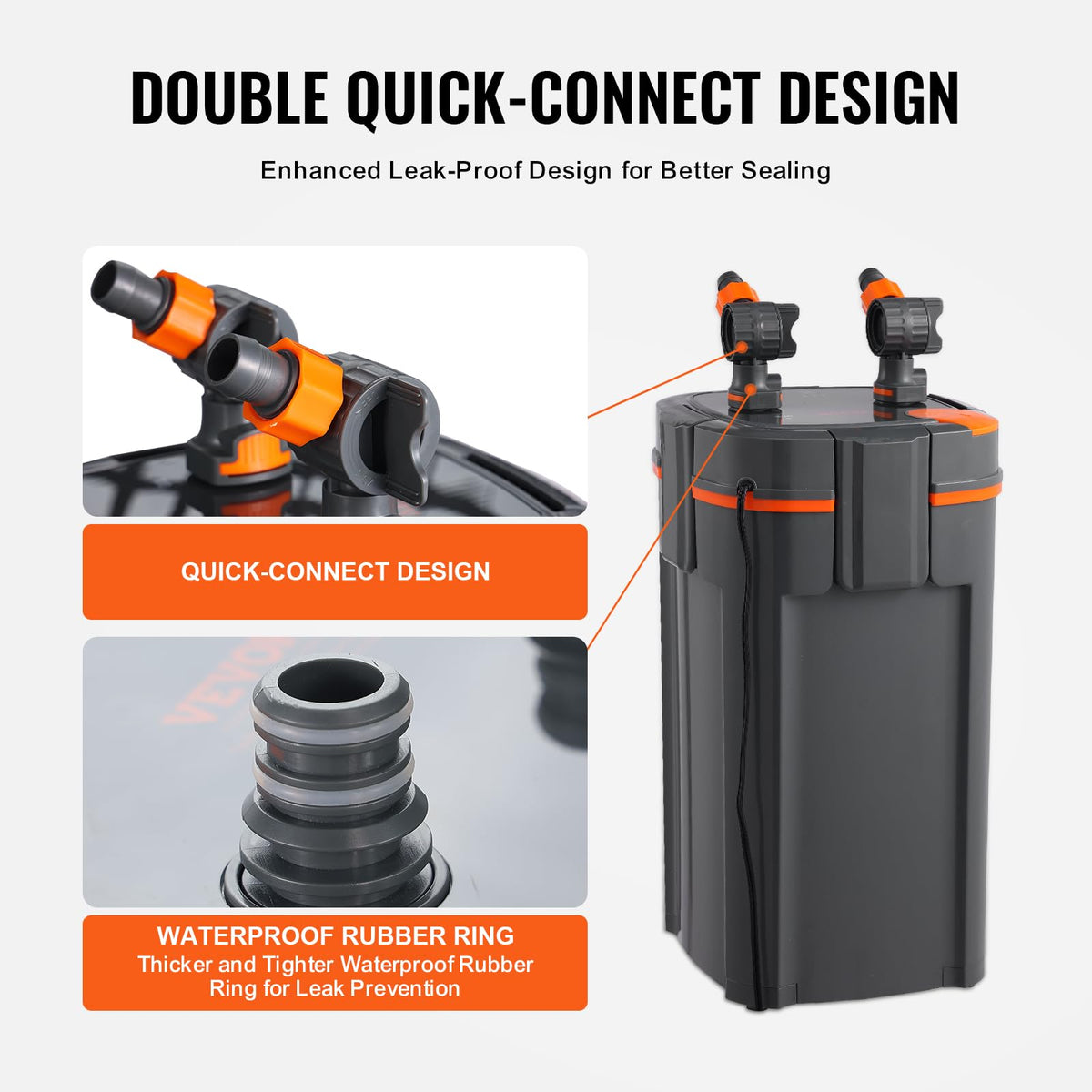

Quick-Detach Connectors

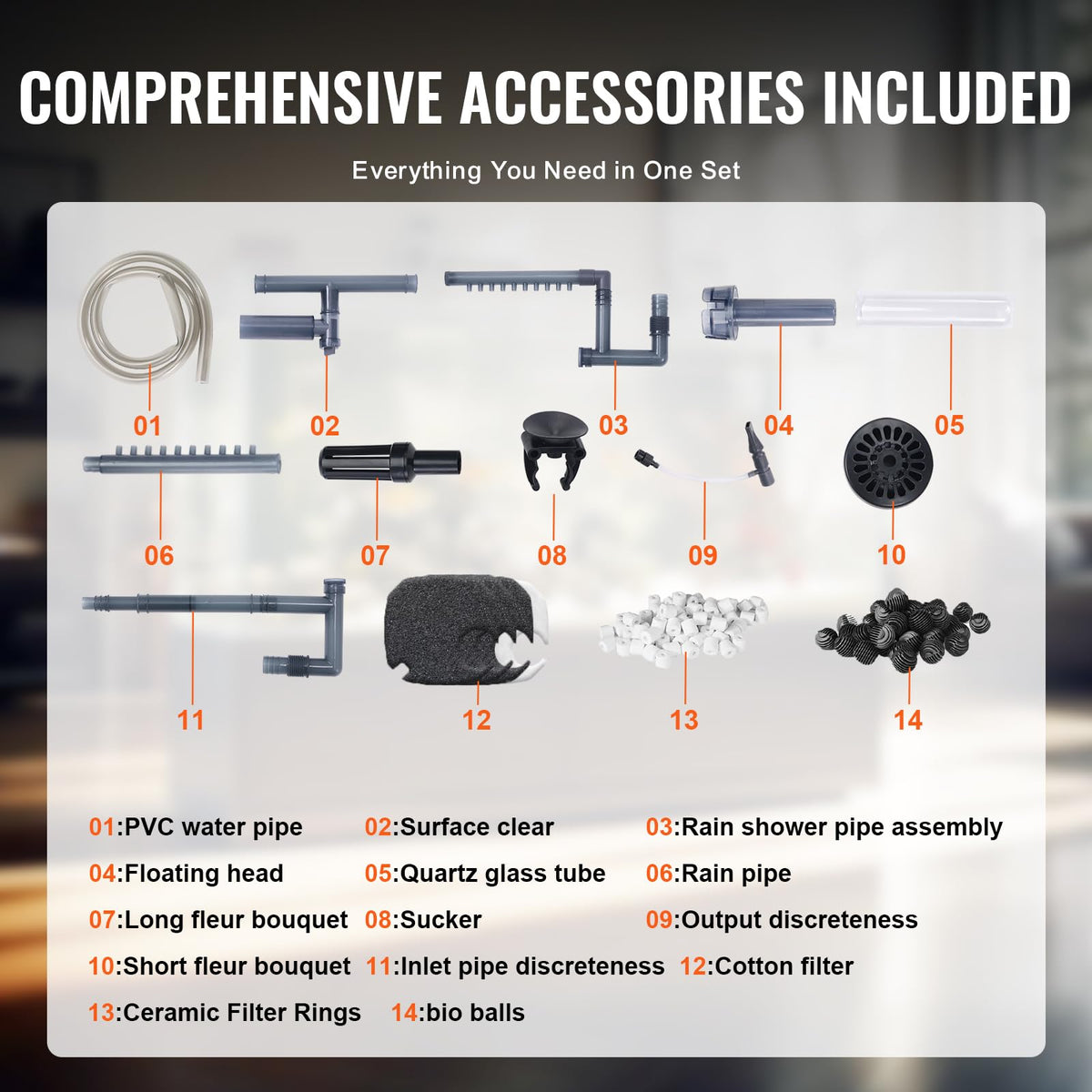

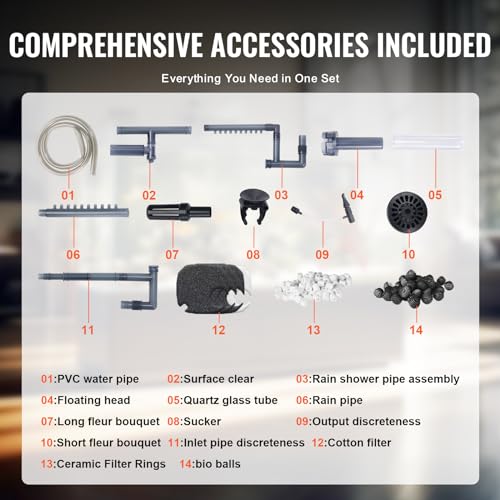

The double-connector assembly allows the hoses to be separated from the canister during scheduled maintenance.
Air-Release Function
The air-release valve helps expel trapped air after installation or cleaning, supporting stable water flow through the system.

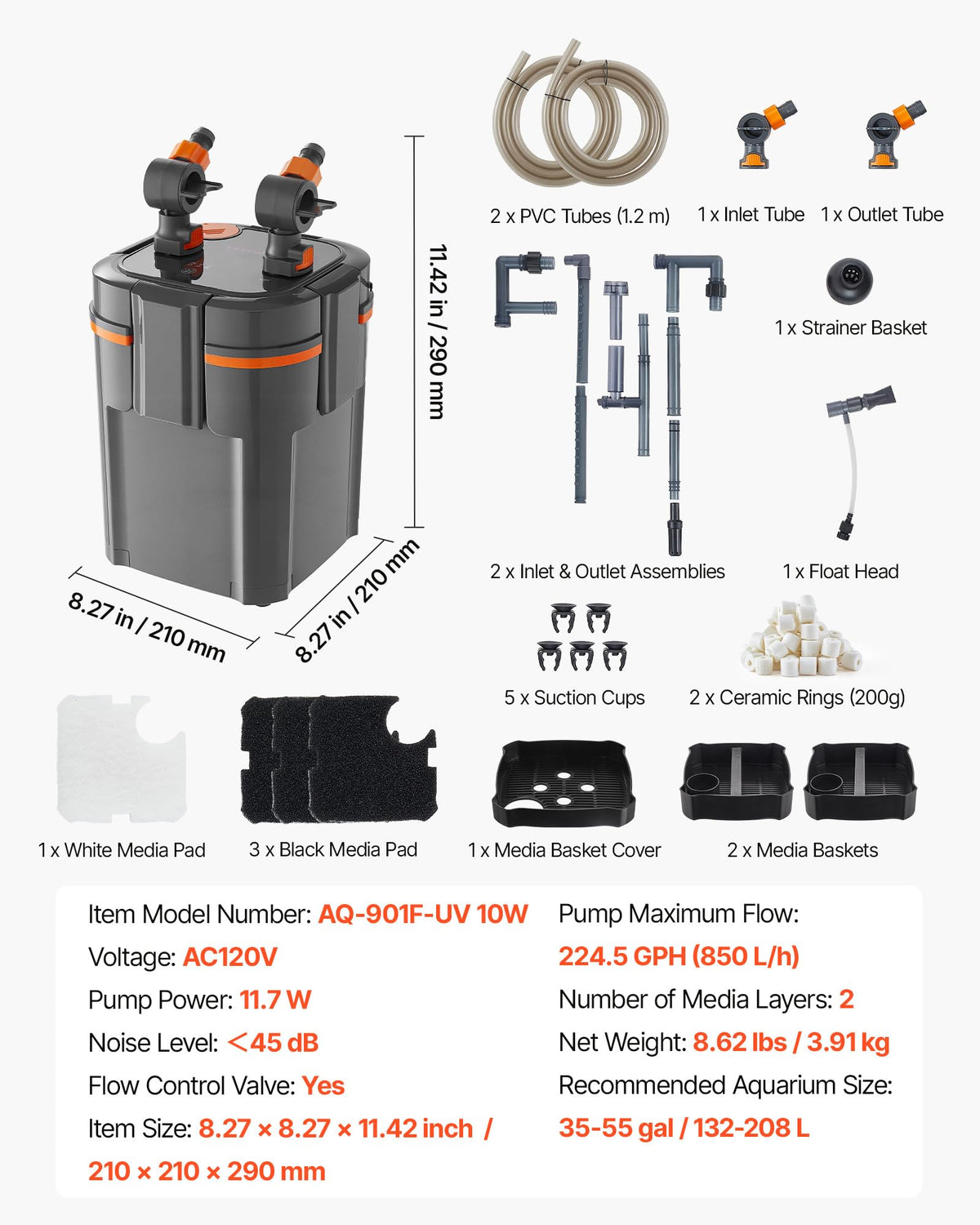

Product Specifications
- Brand: VEVOR
- Product type: External aquarium canister filter
- Selected model: 224.5 GPH-UV
- Recommended aquarium capacity: 35–55 gallons
- Rated no-load flow: 224.5 GPH
- Pump power: 11.7W
- Integrated light: Timed 7W clarifying light
- Filtration system: Two-stage, multi-layer media filtration
- Motor: Full-copper brushless motor
- Shaft material: Zirconia
- Stated operating noise: Below 45 dB
- Flow control: Adjustable valve
- Seal: Rubber sealing ring
- Locking system: Bi-directional gear lock
- Hose length: 1.2 m
- Hose diameter: 20 mm outer / 16 mm inner
- Colour: Black
- Power source: Corded electric
- Item weight: Approximately 8.6 lb
- Recommended water type: Freshwater
Installation and Safety Information

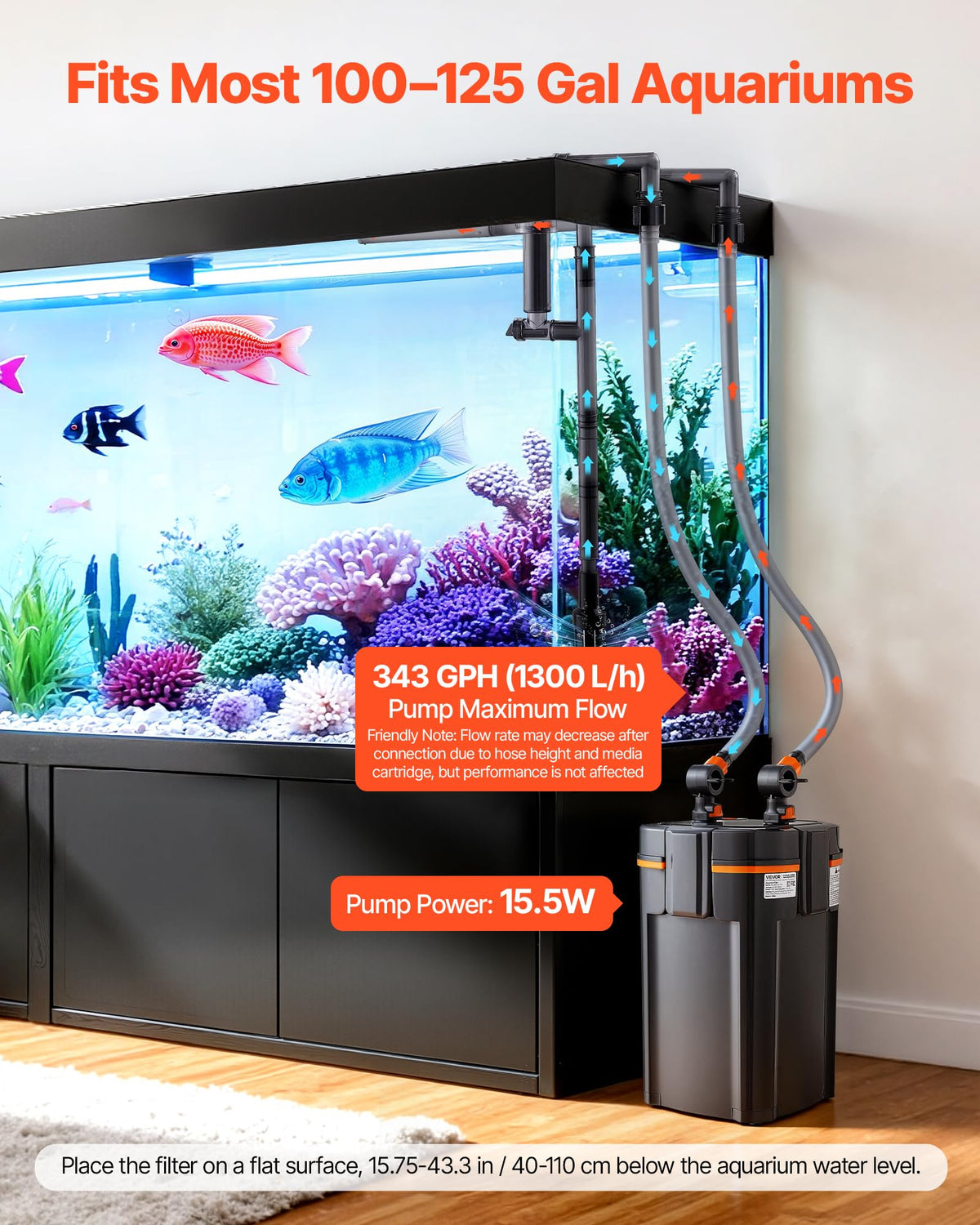

Install the canister below the aquarium’s water level and follow the supplied priming instructions before switching on the pump. Check all hose connections and seals for leaks before leaving the filter unattended. Disconnect electrical power before opening the canister or performing maintenance. Never operate the pump dry, and keep plugs and outlets protected from aquarium water with an appropriate drip loop.
